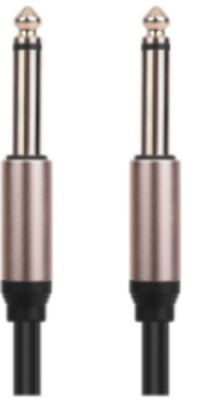

6.35mm Coupler (Male to Male)
To order

6.35mm Coupler (Male to Male)

CPL-6.35mm-MM

Joins two 6.35mm cables together, or changes the gender of a connector.

Type
Adapter
Connectors
6.35mm
In-depth technical details

3.5mm and 6.35mm audio jacks are TS, TRS, or TRRS depending on the number of insulating bands visible on the plug -- TS (mono) has one band, TRS (stereo, or balanced mono line-level) has two, TRRS (adds a mic channel) has three. The band count on the actual plug is the real, checkable way to tell which wiring a cable carries.

Request a quote on WhatsApp
6.35mm

Connector anatomy

6.35 mm jack

  • 01 Tip Carries the left channel in stereo use, or the whole signal in mono.
  • 02 Ring The right channel. Crackle when you wiggle the plug is this ring losing contact.
  • 03 Sleeve The common ground — the voltage reference the signal is measured against.
  • 04 Insulating bands The black bands keep the conductors apart. Without them the channels short to ground.
  • 05 Strain-relief boot Stops the wires flexing where they leave the plug — the exact point most cables fail.
  • 06 Outer jacket The outer sheath protecting the conductors inside from abrasion and moisture.

Technical illustration, not a photo of the actual product

From the published standard

How it works

An inline coupler joins two cables of the same type to extend a run, or changes connector gender so two devices with the same plug type can meet. It is purely passive and neither boosts nor cleans the signal, so every extra coupler on a run adds a contact point that can degrade over time — a single cable of the right length is preferable whenever that is practical.

Function
Passive join or gender change — no signal boost
Trade-off
Each coupler adds a contact point that can degrade over time

This information comes from published sources about this type of product, not from the supplier.

Technical specifications

TypeAdapter
Connectors6.35mm
