USB to RJ45 Console Cable

CON-USB-RJ45

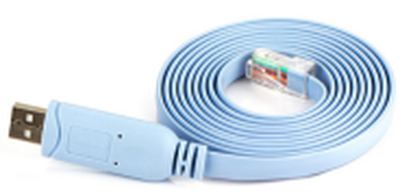

Management cable that connects a laptop to the console port on a switch or router. FT232R+ZT213 chipset.

Type: Adapter
Length: 1.8 m
Connectors: USB / RJ45

In-depth technical details

This RJ45 end carries a serial console signal via the cable's own FT232R USB-to-UART chip, not Ethernet -- its pin wiring is the vendor's own console/rollover pinout (commonly a Cisco-style rollover on this class of cable), not the T568A/B Ethernet standard; never assume standard Ethernet wiring on a console cable's RJ45 end.

Request a quote on WhatsApp

From its box

Scroll to explore

End A

USB Type-A

01 VBUS +5V power. Slightly longer than the other pins so it mates first and breaks last.
02 D+ / D− The differential data pair -- the same signal inverted on each wire, so noise cancels at the receiver.
03 GND The common ground -- the voltage reference every other signal is measured against.
04 Metal shell The plastic tongue sits in one half of the shell only, which is why the plug goes in one way up.
05 Strain-relief boot Stops the wires flexing where they leave the plug — the exact point most cables fail.
06 Outer jacket The outer sheath protecting the conductors inside from abrasion and moisture.

Technical illustration, not a photo of the actual product

End B

RJ45 (8P8C)

01 8 gold contacts The eight blades pierce the wire insulation to touch the copper directly — four pairs, two for transmit and two for receive.
02 Locking clip Snaps inside the socket so vibration cannot pull the plug out. A snapped clip is the number-one cause of intermittent network drops.
03 T568A vs T568B Two equivalent wiring standards: T568A puts the green pair on pins 1-2 and orange on 3-6; T568B swaps them. Performance is identical as long as both ends of the same cable use the same standard.
04 Strain-relief boot Stops the wires flexing where they leave the plug — the exact point most cables fail.
05 Outer jacket The outer sheath protecting the conductors inside from abrasion and moisture.

Technical illustration, not a photo of the actual product

How it works

USB cable construction

The data pair is twisted and works differentially, like network cable. The power wires are thicker because they carry current, and their thickness is what really decides whether a cable charges fast.

01 Power wires 5 V and ground. Thicker copper means less voltage drop over the run, and faster charging.
02 Twisted data pair D+ and D−: the same signal inverted, so noise cancels at the receiver.
03 Shield A grounded conductive wrap that absorbs electromagnetic interference before it reaches the signal.
04 Outer jacket Protects everything inside mechanically. It plays no electrical role.

Technical illustration, not a photo of the actual product

From the published standard

How it works

A console cable connects a computer to the management port of a switch or router. The connector is RJ45 but the signal is not networking: it is a serial port with a manufacturer-specific pinout. This is the port used when a device is brand new with no configuration, or when network access has been lost, which is why it stays necessary despite being old technology.

Connector vs signal: RJ45 shell, serial signalling — not Ethernet
Used for: First configuration, and recovery when network access is lost
Pinout: Manufacturer-specific; a network patch lead will not work

This information comes from published sources about this type of product, not from the supplier.

en.wikipedia.org

Applications

First-time configuration of a switch or router
Recovering a device that lost its settings

Technical specifications

Type	Adapter
Length	1.8 m
Connectors	USB / RJ45
