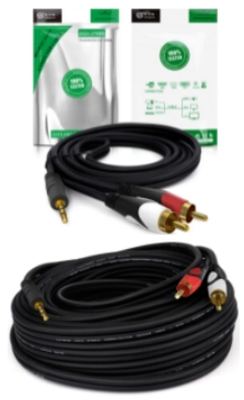

3.5mm to 2x RCA Cable - 5m

AUD-RCA-5M

3.5mm stereo to two RCA plugs, for amplifiers and mixers. Length 5 metres.

Length: 5 m
Connectors: 3.5mm / RCA

In-depth technical details

The 3.5mm (TRS) end of this cable is wired tip=left, ring=right, sleeve=ground, and splits into two RCA plugs using the standard stereo-audio color code -- white = left channel, red = right channel.

Request a quote on WhatsApp

End A

3.5 mm jack

01 Tip Carries the left channel in stereo use, or the whole signal in mono.
02 Ring The right channel. Crackle when you wiggle the plug is this ring losing contact.
03 Sleeve The common ground — the voltage reference the signal is measured against.
04 Insulating bands The black bands keep the conductors apart. Without them the channels short to ground.
05 Strain-relief boot Stops the wires flexing where they leave the plug — the exact point most cables fail.
06 Outer jacket The outer sheath protecting the conductors inside from abrasion and moisture.

Technical illustration, not a photo of the actual product

End B

RCA / phono

01 Centre pin Carries the signal itself — one channel of audio, or a whole composite video picture.
02 Outer collar Ground and shield in one. It mates before the centre pin, which is what stops the loud pop.
03 Colour code Red is right, white is left, yellow is composite video. A convention only — electrically the plugs are identical.
04 Strain-relief boot Stops the wires flexing where they leave the plug — the exact point most cables fail.
05 Outer jacket The outer sheath protecting the conductors inside from abrasion and moisture.

Technical illustration, not a photo of the actual product

How it works

Unbalanced audio cable

Two independent conductors (left and right) share one ground braid. Neither channel gets noise cancellation, which is why hum and hiss appear after a few metres.

01 Left and right conductors Each channel carries its own signal, referenced to the shared ground.
02 Shield A grounded conductive wrap that absorbs electromagnetic interference before it reaches the signal.
03 Outer jacket Protects everything inside mechanically. It plays no electrical role.

Technical illustration, not a photo of the actual product

From the published standard

How it works

In an unbalanced connection one conductor carries the signal while the braid serves as both ground and shield. There is no inverted copy to cancel noise, so hum and hiss start to appear after a few metres, particularly near mains cable or power supplies. For long runs the answer is a balanced connection, not a longer unbalanced cable.

Principle: Single-ended — no noise cancellation
Practical length: Short runs; hum risk grows with distance and nearby mains
Colour convention: Red = right, white = left, yellow = composite video

This information comes from published sources about this type of product, not from the supplier.

en.wikipedia.org

Applications

Connecting equipment in an office or studio

Technical specifications

Length	5 m
Connectors	3.5mm / RCA
